Industrial Tape Innovation
3M VHB Tape High Bond, Replaces Welding
100% closed-cell acrylic foam double-sided tape designed to replace screws, rivets, or welding. Provides durable, permanent bonding with a seamless, clean finish that meets world-class industrial standards.
3M VHB supports all industries, from automotive to medical devices.
Automotive Industry
Attaching car parts, visors, body kits, and car logos. Withstands driving vibrations.
Construction & Decoration
Attaching building glass (Curtain Walls), composite panels, furniture, and woodwork.
Signage
Attaching metal/acrylic letters, light boxes, and traffic signs. Provides a seamless finish without visible screws.
Electrical Appliances
Attaching control panels, oven glass fronts, circuit boards, and bonding metal to plastic.
Electronic Components
Bonding camera lenses, smartphone screens, batteries, and providing water/dust seals.
Medical Devices
Assembling medical tools, attaching monitor screens, and sterile sealing applications.
COMPARISON TABLE
Popular 3M VHB Series Comparison Table
Overview of key features for each series to help engineers and users select the precise specifications.
← Scroll horizontally to view all columns →
VHB Series
Appearance/Color
Key Features & Applications
GPH Series
Gray Foam, High Temp
Ultra-high temperature resistance up to 230°C. Supports pre-powder coat processes.

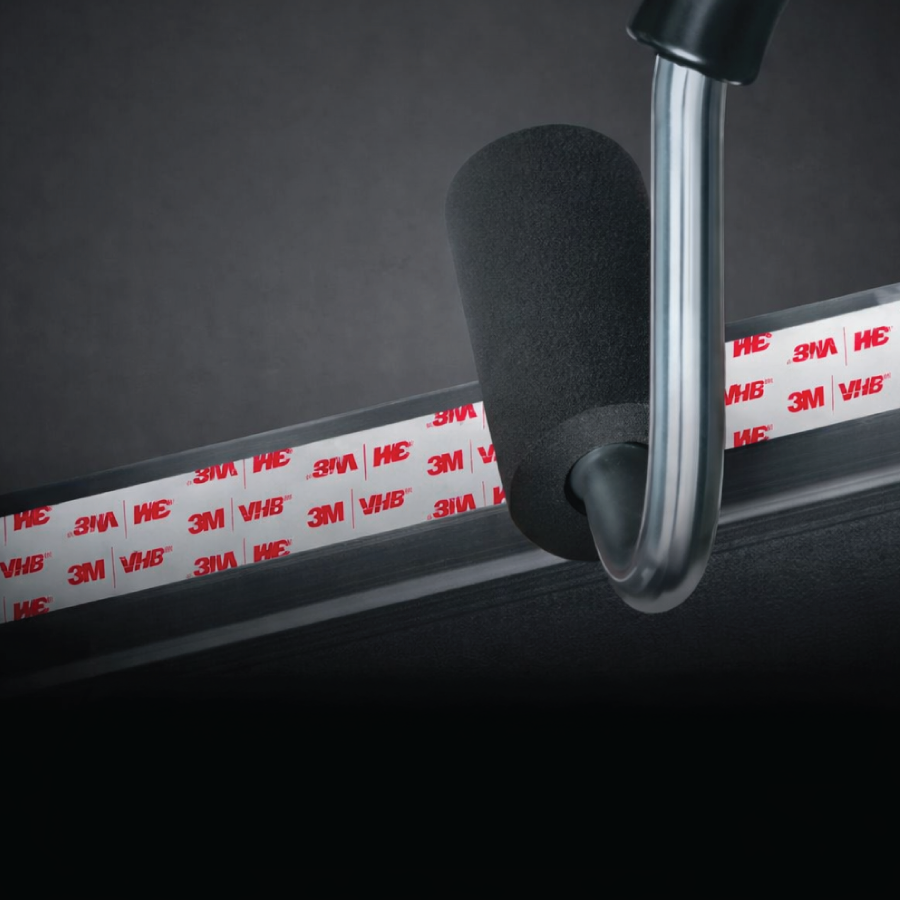

LSE Series
White Foam, Primerless
Designed specifically for hard-to-bond plastics (PP, TPO) without the need for primer.
5952 Family
Black Foam, Flexible
Excellent impact resistance. Bonds well to irregular surfaces or powder-coated materials.

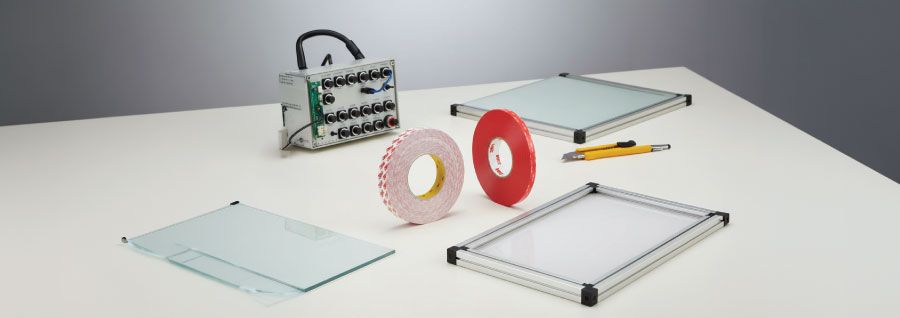

4910 Family
Clear
100% glass-like transparency. Ideal for illuminated signs, clear acrylic, and hidden joints.
Frequently Asked Questions (FAQ)
What is 3M VHB?
3M VHB is a double-sided tape made of 100% closed-cell acrylic foam. It is highly flexible and designed to replace screws, rivets, or welding. It offers excellent tensile and shear strength, and distributes stress perfectly.
How many 3M VHB series are there and what are the differences?
3M VHB is divided into 3 main groups: 1. Newer Series (GPH for high heat, LSE for hard-to-bond plastics). 2. Core Families (5952 black foam, 4941 for vinyl, 4910 clear). 3. Specialty Families (4611 for high temp, 4951 for cold environments).
What applications is 3M VHB suitable for?
Suitable for the automotive industry (body kits), construction (curtain walls, composite panels), signage, electrical appliances, and electronic component assembly.
Acrylic foam tape with a thickness of 1.1 mm, dark gray tape, suitable for Stick to the surface before painting and then bake to withstand high temperatures It is a fast, easy to use fastener that provides long-term strength and durability.
3M VHB 4910 Thin-sided adhesive tape With a thickness of only 1.0 mm. The color of the tape is clean. Suitable for use Mounting aluminum frames with glass attached to plastic labels Various parts of electrical appliances Electronic Devices Stick to the car structure And others that require permanent adhesion strength
3M VHB 4914 Double-sided Tape Strong adhesion. The unique adhesive and the stress dispersion effect of the flexible acrylic foam exerts strong adhesion. Easy work. Remove oil, water and dust on the material side, and press-bond it with a sticking roller to complete. Follows the deformation of joints and does not leave residual stress High peel strength to absorb repulsive force Normal temperature pressure sensitive adhesive type Prevents stress concentration by surface bonding High sealing Excellent weather resistance, can be used outdoors Excellent in vibration absorption
3M VHB 4920 is a 15 mil white acrylic firm foam tape with double coated acrylic adhesive. This product bonds to most high surface energy substrates including metal, glass, and high surface energy plastic substrates.
VHB 4941 Acrylic adhesive tape, foam tape Gray tape It is a double-sided adhesive tape that can be used to replace the screw nut, suitable for applications that require high strength. Weight gain Permanent adhesion for mounting difficult to stick surfaces And has a thickness of only 1.1 mm
3M VHB Tape 4950P It is a white, 0.045 in (1.1 mm), general purpose acrylic adhesive with a firm foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.
3M VHB 4991 with a thickness of 2.3 mm can replace welds, joints and screws. Permanent adhesion methods that are fast and easy to use, have high durability and long-term durability. With flexibility in design with viscosity and ability to attach to a variety of surfaces
The 5952 family of 3M™ VHB™ Tapes utilizes modified acrylic adhesive on both sides of a very conformable, adhesive foam core. The combination of strength, conformability and adhesion makes this family one of the most capable and well-rounded 3M™ VHB™ Tapes. It is specifically designed for good adhesion to high, medium and lower surface energy plastics and paints, metals and glass. Applications for this tape include bonding and sealing polycarbonate lens over LCD, signage and windows to post-painted control panels.
3M VHB 5925F Black acrylic adhesive The thickness is only 0.6 mm. Can replace the welded joints and screws. Fast and easy to use, fast and easy to use Long-term durability With design flexibility viscoelasticity And the ability to attach to various surfaces
