MT PI50 Polyimide Tape

Be the first to review this product
Polyimide Tape 50um is a single-sided adhesive tape. Heat resistant Suitable for electrical work Electronics due to resistance to Corona discharge, the cause of ion formation Which causes loss of electrical insulation when the critical pressure reaches
SKU: ม้วน/Roll
*
฿90.00 excl tax
This product has a minimum quantity of 5
i h
QUICK STOCK CHECK

เช็คสต๊อกก่อนสั่งซื้อ

ติดต่อเจ้าหน้าที่เพื่อเช็คสินค้าจริง
ตอบไว มั่นใจก่อนชำระเงิน

LINE Icon
ติดต่อพนักงานทางไลน์
แจ้งรุ่น/ขนาด เช็คสต๊อกได้ทันที
Chat Icon
แชทสดผ่านหน้าเว็บ
Line: @wetapestore | โทร: 02-026-3363
*** กรุณาเช็คสต๊อกสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อ ***
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: จัดส่งสินค้าได้ใน วันถัดไป หลังจากชำระค่าสินค้าก่อน 15.00 น.
Product Files




Electrical Insulation Polyimide Tape "Max Heat Resistance +286°C"

WE-PI50 Polyimide Tape features a 50-micron polyimide film coated with silicone adhesive, totaling 0.08 mm in thickness. Designed for electrical insulation and solder masking in electronics, it withstands lead-free soldering temperatures, peels off without leaving residue, and is easy to die-cut to specific shapes.

Heat Heat Resistant −73°C to +286°C
Dielectric Breakdown 7.0 KV
Die-cut 50µm Thin Film · Easy to Die-cut
High-Temperature Polyimide Insulation Tape

WE PI50 Polyimide Tape (Amber, 50µm / Silicone Adhesive)

50-Micron Polyimide/Kapton Film Tape, High-Temperature Electrical Insulation
Made from electronics-grade polyimide film coated with heat-stable silicone adhesive. With a total thickness of only 0.08 mm, it is thin and lightweight, conforming closely to surfaces and easy to die-cut. Withstands operating temperatures from −73°C to +286°C, supporting lead-free soldering processes without shrinking or leaving adhesive residue.

Engineering Highlights of WE-PI50

  • Heat Resistant to +286°C: Operating range from −73°C to +286°C. Supports lead-free Wave/Reflow Soldering (peak around 260°C) with ample margin. (Source: WE-PI50 TDS, GB/T7292-1998)
  • Electrical Insulation Breakdown 7.0 KV: 7.0 KV breakdown voltage is ideal for preventing short circuits on circuit boards and coils. (Source: WE-PI50 TDS, GB7753-1987)
  • 50µm Thin but Tough Film: Tensile strength of 160 N/25mm and 70% elongation allows it to conform to curves and wrap around components without tearing. (Source: WE-PI50 TDS, GB7753-1987)
  • Silicone Adhesive, Clean Removal: Heat-stable silicone adhesive system with 6.5 N/25mm adhesion removes cleanly without leaving residue after processing. (Source: WE-PI50 TDS, GB/T72792-1998)

High-Temperature Electrical Insulation — The Standard for Electronics Manufacturing Lines

WE-PI50 is a polyimide tape for applications requiring simultaneous heat and electrical resistance. The polyimide film provides both dimensional stability at high temperatures and built-in electrical insulation. Paired with a silicone adhesive that won't melt or leave residue when exposed to heat, it's perfect for Solder Masking, Gold Finger protection, and coil wrapping. Solves the problems of burnt adhesive residue and film shrinking in ovens.

In-depth Technical Specifications

Adhesive System Silicone Adhesive
Total Thickness 0.08 mm (±0.001)
Base Film Thickness (Substrate) 0.050 mm (50 µm)
Adhesion 6.5 N/25mm
Tensile Strength 160 N/25mm
Elongation 70%
Breakdown Voltage 7.0 KV
Heat Resistance Range −73°C to +286°C
Roll Length 33 Meters
Film / Liner Color Amber (Characteristic of Polyimide film) / PET Liner 50 µm
Outstanding Features Good for Insulation · Easy Die-Cut Converting
All Sources: WE-PI50 Technical Data Sheet, MaterialOne (Thailand) Limited, June 2014 · Values are Typical Values and should be tested with actual applications before specification.
Applications of WE-PI50


50-Micron Polyimide Film for electrical insulation and high-temperature applications in electronics and manufacturing.

PCBA Solder Masking PCBA Solder Masking
PCBA Solder Masking
Masks areas not to be soldered and protects Gold Fingers during Wave/Reflow processes. Withstands +286°C, passes through ovens without shrinking, and removes cleanly without residue.

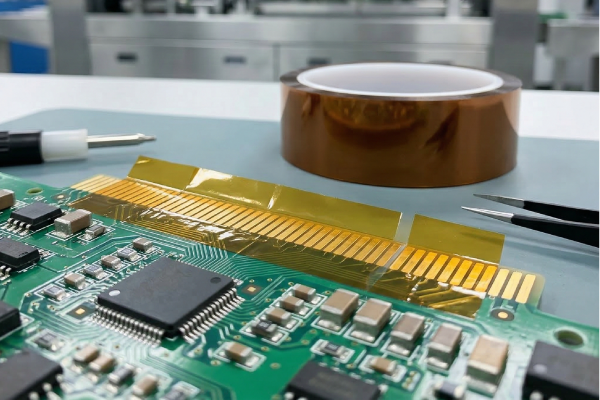

Electrical Insulation in Electronics Electrical Insulation
Electrical Insulation in Electronics
Used as insulation to prevent short circuits on circuit boards and electronic components, featuring a breakdown voltage of 7.0 KV and a thin 50µm film.

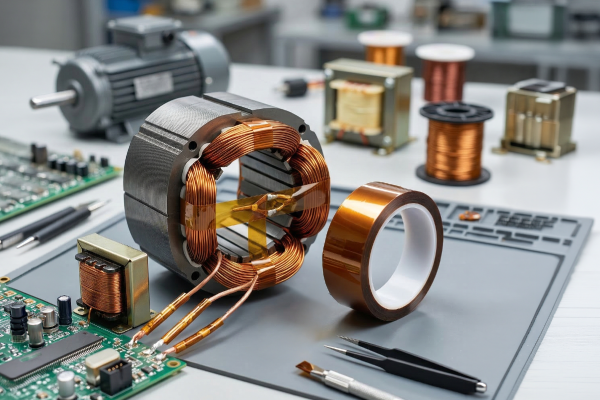

Motor and Transformer Coil Wrapping Coil & Transformer
Motor and Transformer Coil Wrapping
Binds and separates insulation between coil layers in transformers and motors. The tough film with 160 N/25mm tensile strength can wrap tightly around curves without tearing.
Die-Cut to Custom Shapes Die-Cut Converting
Die-Cut to Custom Shapes
Die-cut into specific shapes for electronic components and batteries. Polyimide film is easily cut and shaped with sharp, wrinkle-free edges (Easy Converting by Die-Cut).

ข้อมูลจำเพาะทางเทคนิค

รายละเอียดผลิตภัณฑ์: MT PI50 Polyimide Tape (เทปโพลีอิไมด์)

รุ่นผลิตภัณฑ์ (Model) MT PI50 — Polyimide Tape
วัสดุเทป (Material) ฟิล์มโพลีอิไมด์ + กาวซิลิโคน (Polyimide Film + Silicone Adhesive)
สีฟิล์ม / ไลน์เนอร์ (Color / Liner) อำพัน (Amber) / ไลน์เนอร์ฟิล์ม PET 50 µm
โครงสร้างความหนา (Thickness)
ตามชั้นวัสดุ		 • ความหนารวม : 0.08 มิลลิเมตร (±0.001 มม.)
• ฟิล์มเบสโพลีอิไมด์ : 0.050 มิลลิเมตร (50 µm)
คุณสมบัติเชิงกลและไฟฟ้า
Mechanical & Electrical		 • แรงยึดติด (Adhesion) : 6.5 N/25mm
• ความทนแรงดึง (Tensile Strength) : 160 N/25mm
• การยืดตัว (Elongation) : 70%
• แรงดันเบรกดาวน์ (Breakdown Voltage) : 7.0 KV
• ช่วงทนความร้อน (Heat Resistance) : −73°C ถึง +286°C
ความยาวมาตรฐาน (Length) 33 เมตร ต่อม้วน
  • Polyimide Tape ทนความร้อน
