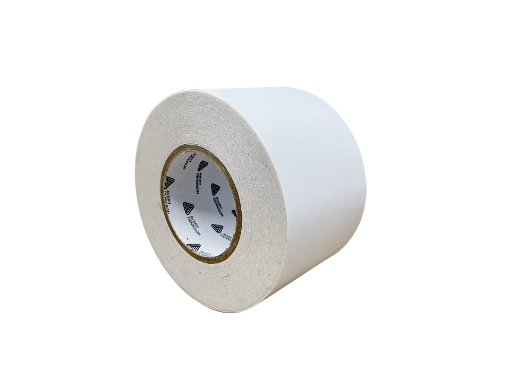

FT 7701 double coated tissue tape

Manufacturer: Avery Dennison
Avery Dennison FT 7701 is a 150-micron Double Coated Tissue Tape featuring a Modified Acrylic adhesive specifically engineered for bonding foam, fiber materials, and a wide range of plastic substrates. It provides excellent adhesion while maintaining reliable performance in high-temperature and high-humidity environments. Designed for demanding industrial applications, FT 7701 is an ideal solution for automotive assembly, electrical appliances, and general manufacturing processes that require strong, consistent, and long-lasting bonding.
SKU: FT 7701
฿130.00 excl tax
This product has a minimum quantity of 5
i h
QUICK STOCK CHECK

เช็คสต๊อกก่อนสั่งซื้อ

ติดต่อเจ้าหน้าที่เพื่อเช็คสินค้าจริง
ตอบไว มั่นใจก่อนชำระเงิน

LINE Icon
ติดต่อพนักงานทางไลน์
แจ้งรุ่น/ขนาด เช็คสต๊อกได้ทันที
Chat Icon
แชทสดผ่านหน้าเว็บ
Line: @wetapestore | โทร: 02-026-3363
*** กรุณาเช็คสต๊อกสินค้ากับเจ้าหน้าที่ก่อนสั่งซื้อ ***
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Files




Automotive Industrial Assembly Solution "Strong Foam and Fiber Bonding with Heat and Humidity Resistance"

Avery Dennison FT 7701 Double Coated Tissue Tape a double coated tissue tape with a 0.15 mm adhesive-plus-carrier thickness. Designed for applications requiring high adhesion to foam and fibers in the automotive industry It bonds well to PUR, PE foam, and low- to medium-surface-energy materials such as PP, ABS, and painted steel, while providing heat and humidity resistance.

0.15 mm Adhesive + Carrier Thickness
Intermittent Heat Resistance up to 130°C
High Heat and Humidity Resistance
Industrial Adhesive Tape

Avery Dennison FT 7701 Tissue Tape Double Coated Tissue Tape (0.15 mm)

Double coated tissue tape with modified acrylic adhesive on both sides and a 0.15 mm adhesive-plus-carrier thickness
Avery Dennison FT 7701 is designed for medium- to high-end foam and fiber bonding applications in the automotive industry. It provides strong adhesion to PUR, PE foam, PP, ABS, and painted steel, with excellent conformability to irregular surfaces.

Key Features of Avery Dennison FT 7701

  • 0.15 mm Adhesive + Carrier Thickness Controlled adhesive thickness for consistent application performance
  • Excellent adhesion to foam and fibers such as PUR and PE foam, as well as PP, ABS, and painted steel
  • High Heat and Humidity Resistance Maximum continuous operating temperature of 120°C and maximum intermittent operating temperature of 130°C
  • Conforms well to irregular surfaces with an easy-release White PCK liner for convenient removal at the point of application

High-Adhesion Tissue Tape for Automotive Foam and Fiber Bonding!

With modified acrylic adhesive on both sides, "Avery Dennison FT 7701" provides excellent adhesion to foam and fibers such as PUR and PE foam, as well as low- to medium-surface-energy materials including PP, ABS, and painted steel. It conforms well to irregular surfaces while delivering consistent application and adhesion performance.

Detailed Technical Specifications

Adhesive Type (Adhesive Type) Modified Acrylic
Thickness Excluding Liner 0.15 mm
Total Thickness Including Liner 0.26 mm
Liner Thickness 0.11 mm
Minimum Application Temperature 10°C
Maximum Intermittent Operating Temperature 130°C
Maximum Continuous Operating Temperature 120°C
Liner Material White PCK paper, 0.11 mm thick
Recommended Applications Foam and fiber lamination, PP and ABS bonding, painted-steel bonding, and automotive component assembly
Recommended Applications for Avery Dennison FT 7701


A double coated tissue tape for bonding foam, fibers, and materials in automotive applications. It provides high adhesion, conforms well to irregular surfaces, and resists heat and humidity.

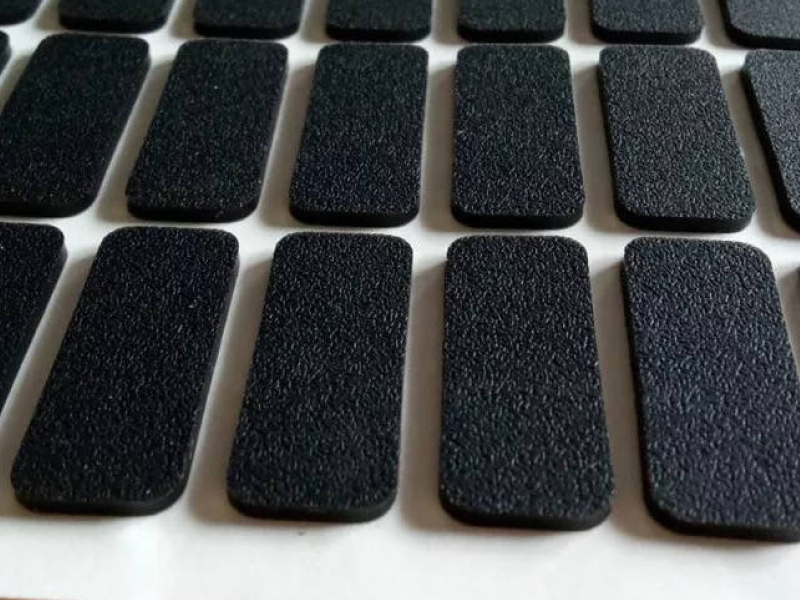

Foam and Fiber Bonding Foam & Fiber Bonding
Foam and Fiber Bonding
Suitable for medium- to high-end foam and fiber lamination, including PUR and PE foam, providing high adhesion and consistent performance in automotive applications.

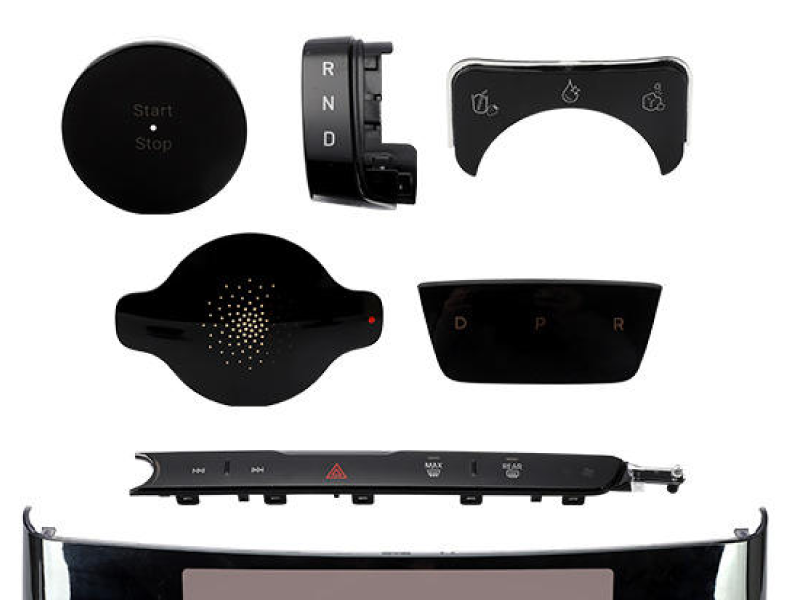

PP and ABS Bonding PP & ABS Bonding
PP and ABS Bonding
Supports bonding to low- to medium-surface-energy materials such as PP and ABS, making it suitable for assembling plastic components in the automotive industry.

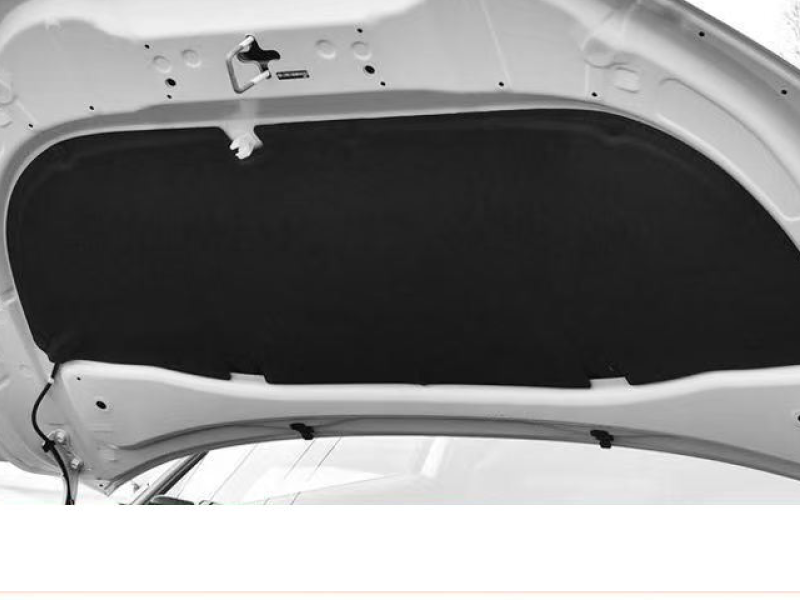

Bonding to Painted Steel Surfaces Painted Steel
Bonding to Painted Steel Surfaces
Bonds foam, PP and ABS plastics, and other materials to painted steel surfaces. It provides high adhesion and resistance to heat and humidity, making it suitable for automotive component assembly.

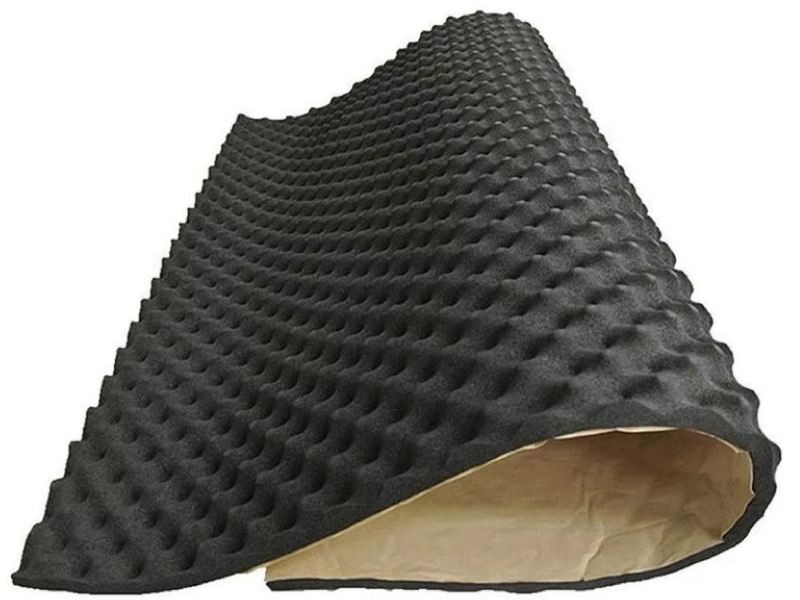

Irregular Surface Bonding Irregular Surfaces
Irregular Surface Bonding
The tissue carrier allows the tape to conform well to contours and irregular material surfaces, making it suitable for foam components, fibers, and automotive interior assembly.

ข้อมูลจำเพาะทางเทคนิค

รายละเอียดผลิตภัณฑ์: Avery Dennison FT 7701

Product FT 7701
Product type Double Coated Tissue Tape
Carrier Tissue
Adhesive Modified Acrylic
Liner White PCK, 0.110 mm (110 microns)
Total thickness without liner 0.150 mm (150 microns)
Minimum application temperature 10°C (50°F)
Operating temperature Continuous: 120°C (248°F) / Intermittent: 130°C (266°F)
Storage and shelf life Shelf life of two years when stored in the original packaging at 18–22°C, 30–70% relative humidity and protected from direct sunlight.
