Specifications
|
|
Attribute Name
|
Value
|
|
Adhesion to Stainless
|
20 oz/in
|
|
Adhesive Material
|
Silicone
|
|
Adhesive Type
|
Silicone, Silicone Adhesive
|
|
Application Category
|
Protection
|
|
Applications
|

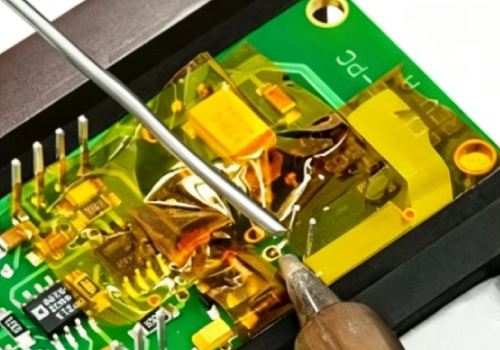

Solder Masking Tape
|
|
Backing
|
Polyimide
|
|
Backing Material
|
Polyimide Film
|
|
Brand
|
3M
|
|
Color
|
Amber
|
|
Core Material
|
Polyethylene
|
|
Length
|
36 Linear Yard
|
|
Length (Metric)
|
33 m
|
|
Liner Material
|
None
|
|
National Stock Number
|
7510012001597, 7510013779992, 7510015460214, 7510014709469, 7510015674332
|
|
Performance Features
|
Chemical Resistant, Flame Retardant (UL510FR), Halogen Free, No Adhesive Residue, Radiation Resistant
|
|
Primary Liner
|
None
|
|
Product Form
|
Roll
|
|
Product Series
|
5413
|
|
Size
|
0.50 in. x 36 yd. (1.2 cm x 33 m), 0.75 in. x 36 yd. (1.9 cm x 33 m), 1 in. x 36 yd. (2.5 cm x 33 m), 2 in. x 36 yd. (5.1 cm x 33 m)
|
|
Size (metric)
|
1.2 cm x 33 m, 1.9 cm x 33 m, 2.5 cm x 33 m, 5.1 cm x 33 m
|
|
Standard Roll Size
|
36 Linear Yard
|
|
Standard Roll Size (metric)
|
33 m
|
|
Tape Color
|
Amber
|
|
Tape Type
|
Polymide Film
|
|
Temperature Range (Celsius)
|
- 73 Degree C to 260 Degree C, -73C - 260C
|
|
Temperature Range (Fahrenheit)
|
- 100 Degree F to 500 Degree F, -100F - 500F
|
|
Tensile Strength at Break
|
33 lb/in
|
|
Tensile Strength at Break (metric)
|
578 N/100mm
|
|
Thickness
|
2.7 mil
|
|
Thickness (Metric)
|
0.07 mm
|
|
Total Tape Thickness without Liner
|
2.7 mil
|
|
Total Tape Thickness without Liner (metric)
|
0.07 mm
|
|
Total Thickness
|
2.7 mil
|
|
Total Thickness (metric)
|
0.07 mm
|
|
Width
|
0.25 Inch, 0.375 Inch, 0.5 Inch, 0.625 Inch, 0.75 Inch, 0.875 Inch, 1 Inch, 2 Inch
|
|
Width (Metric)
|
127 cm, 159 cm, 191 cm, 22.23 mm, 254 cm, 508 cm, 6 cm, 95 cm
|
